IEC60947-2 High Breaking Double Pole MCB Miniature Circuit Breaker

Wenzhou New Blue Sky Electrical Co.,Ltd
Contact Now

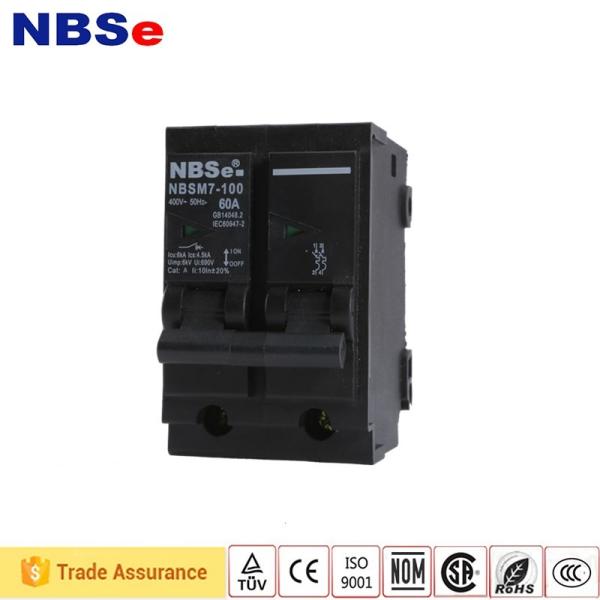

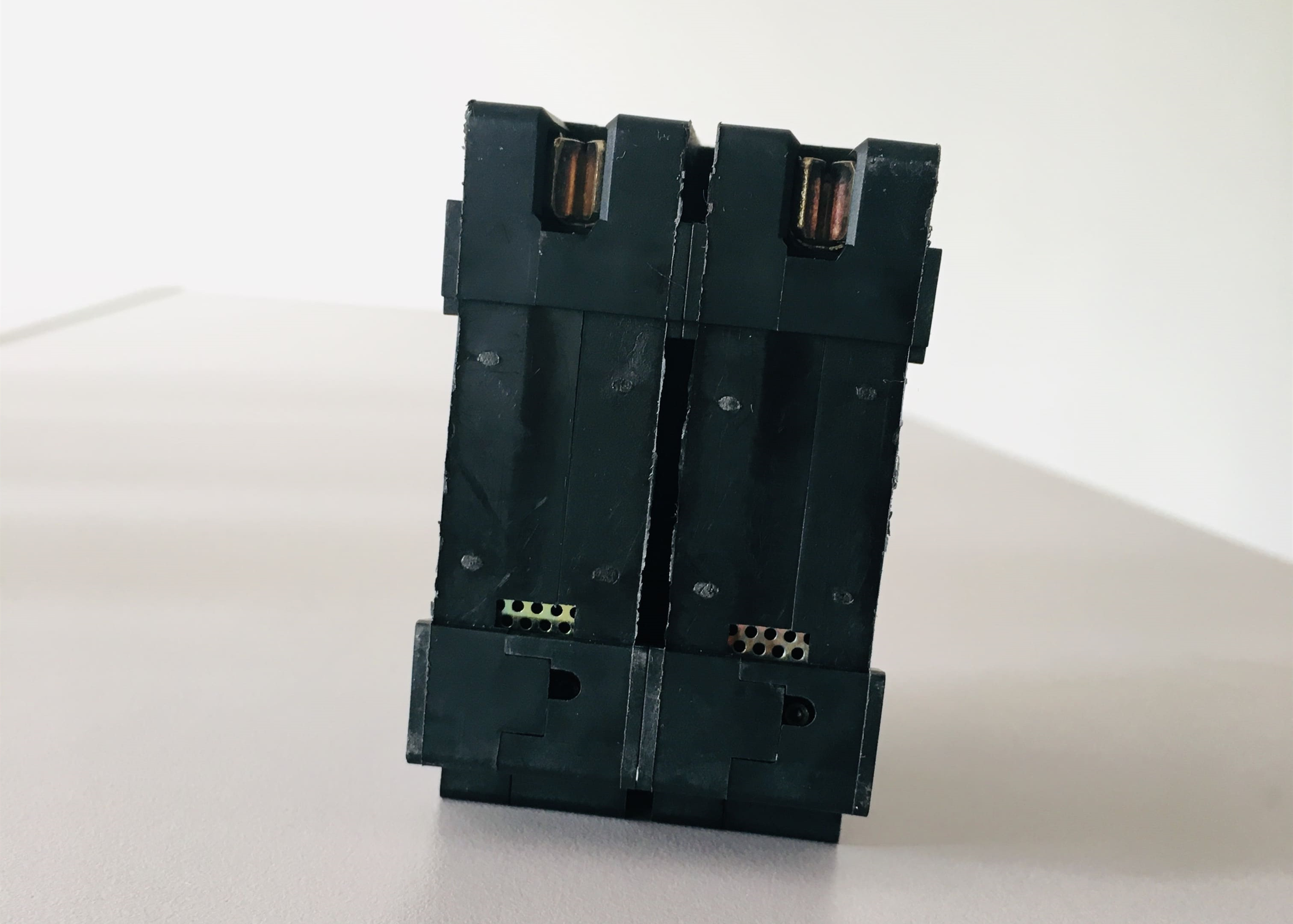

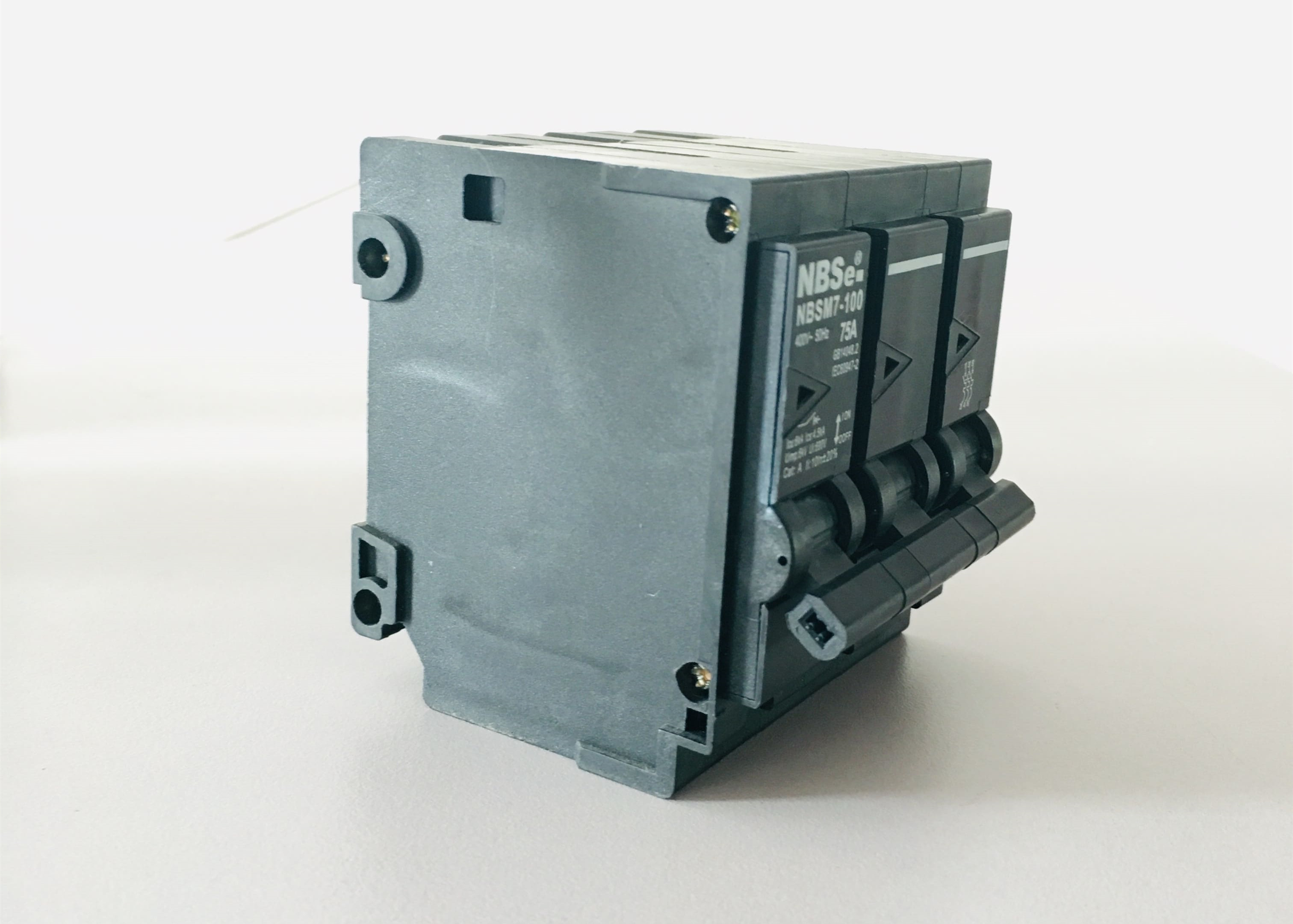

IEC60947-2 High Breaking Double Pole MCB Miniature Circuit Breaker

  • 1
  • 2

Brand Name : NBSe

Model Number : NBSM7-100

Certification : CE,CB,CCC

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 400,000pcs per month

Delivery Time : 10-20days

Packaging Details : Export packing

Rated Current : 16A-125A

Pole : 1P, 2P, 3P

Voltage : 120/240V

Short circuit capacity : 10kA

Characteristic Curve : mcb b c d type

Product name : main switch double pole

Cable Connection : Plug-in type

Service : OEM,ODM

Standard : EN/IEC60947-2

Certificate : CE CB Approved

Contact Now

Main Switch Double Pole,Main Switch Price From Manufacturer,NBSM7-100 With CE,CB Certificate

Description:

NBSM7-100 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature.

It is suitable to power system of 50or 60 frequency ,Ue 400V and below, Ui 100A and below.

It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898 and GB10963.1.

Products features:

1· Breaking capacity highly, all rated current can be up to above 10KA.

2· Double connection function, connect busbar and lead conveniently.

3· With stored energ machine, contact close fast, avoid the disadvantage of manpower operated,Hence improve the using-life of products.

4· with protection terminal, more safety.

5· Many kinds of accessories can be choosed, in modularize and flexibility combine that make the customer install conveniently.

6· The cover and function parts both are made of inflaming retarding,bear high temperature and bear impact plastic.

Product Detail

Standard IEC/EN 60898-1

Electrical

features

Rated current in A 63 80 100
Poles 1P 2P 3P 4P
Rated voltage Ue V 230/400
Insulation coltage Ui V 500
Rated frequency Hz 50/60Hz
Rated breaking capacity A 10000
Rated impulse withstand voltage (1.2/50)Uipm V 6000
Dielectric test voltage at and ind.Freq.for 1min KV 2
Pollution degree 2
Themo-magnetic release characteristic B C D

Mechanical

features

Electrical life 8000
Machanical life 20000
Contact position indicator Yes
Protection degree IP 20
Reference temperature of setting of thermal element °C 30
Ambient temperature(with daily average≤35°C) °C -5~+40
Storage temperature °C -25...+70
Installation Terminal connection type
Terminal size top/bottom for cable

mm²

AWG

25

18-3

Terminal size top/bottom for busbar mm²

AWG

25

18-3

Tightening torque

N*m

In-lbs.

3.0

22

Mounting

OnDIN rail FN 60715(35mm)

by means of fast clip device

Connection From top and bottom

Main Switch Double Pole,Main Switch Price From Manufacturer,NBSM7-100 With CE,CB Certificate

main switch price list

Wiring Diagrams

IEC60947-2 High Breaking Double Pole MCB Miniature Circuit Breaker

Over-Current Protection Property

IEC60947-2 High Breaking Double Pole MCB Miniature Circuit Breaker

IEC60947-2 High Breaking Double Pole MCB Miniature Circuit BreakerIEC60947-2 High Breaking Double Pole MCB Miniature Circuit Breaker

Main Switch Double Pole,Main Switch Price From Manufacturer,NBSM7-100 With CE,CB Certificate

main switch price list

Packaging & Delivery
Packaging Details
General sea worthy Package, export standard carton box.
1P MCB 240pcs/ctn OR 120pcs/ctn
2P MCB 120pcs/ctn OR 60pcs/ctn
3P MCB 80pcs/ctn OR 40pcs/ctn
4P MCB 60pcs/ctn OR 30pcs/ctn
Carton Size 46*24*33cbm
G.W./N.W.: 26/24kgs
Port
Wenzhou Ningbo Shanghai
Lead Time :
According to your quantity, usually 10-25days
