Technical Data:
Rated current(In):20,25,40,63,80,100A
Rated operational voltage(Ue):230/240VAC,400/415VAC
Number of module:1M,2M,3M
Rated frenquency:50/60Hz
Utilization category:AC1,AC3,AC7a,AC7b,AC5b
Electrical endurance:150,000cycles(AC1,AC7a,AC3,AC7b)
Mechanical endurance:1,000,000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):4KV
Terminal:pillar type
Cable termination:16/25mm2
Torque of screw:1.2/2Nm
IP degree:IP20
Standard:IEC/EN61095,IEC/EN60947-1

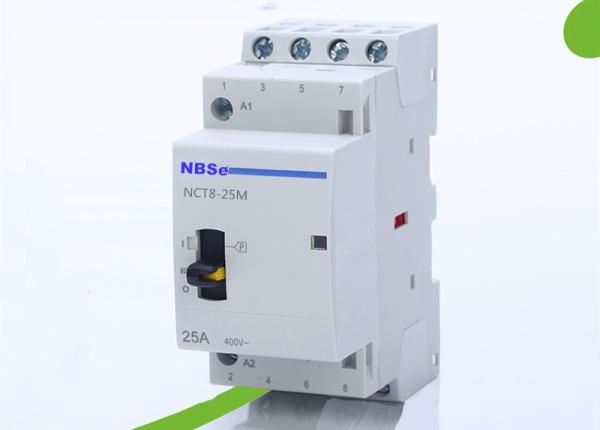

NCT series Modular AC contactor Can be used to remote control applications in the altermative networks:Lighting, heating, ventilation, roller blinds, sanitary hot water,Mechanical ventilation system, Load-shedding of non-priority circuits,etc.
AC contactor belongs to modular controlling electrical equipment, which has novelty structure, compact size, it is DIN-RAIL type, size of modular, modeling artistic. use of safety, direct acting inversion. And it can install in the distribution boards along with breakers.
Catalog No. CTN Size:46.5x24x17.5CM
| Model | Description | QTY/Box | QTY/CTN |
| NCT8-63M-24/40 | 63A 24V 4NO | 1 | 40 |
| NCT8-63M-48/40 | 63A 48V 4NO | 1 | 40 |
| NCT8-63M-110/40 | 63A 110V 4NO | 1 | 40 |
| NCT8-63M-230/40 | 63A 230V 4NO | 1 | 40 |
| NCT8-63M-24/04 | 63A 24V 4NC | 1 | 40 |
| NCT8-63M-48/04 | 63A 48V 4NC | 1 | 40 |
| NCT8-63M-110/04 | 63A 110V 4NC | 1 | 40 |
| NCT8-63M-230/04 | 63A 230V 4NC | 1 | 40 |
| NCT8-63M-24/22 | 63A 24V 2NO+2NC | 1 | 40 |
| NCT8-63M-48/22 | 63A 48V 2NO+2NC | 1 | 40 |
| NCT8-63M-110/22 | 63A 110V 2NO+2NC | 1 | 40 |
| NCT8-63M-230/22 | 63A 230V 2NO+2NC | 1 | 40 |
| NCT8-63M-24/31 | 63A 24V 3NO+1NC | 1 | 40 |
| NCT8-63M-48/31 | 63A 48V 3NO+1NC | 1 | 40 |
| NCT8-63M-110/31 | 63A 110V 3NO+1NC | 1 | 40 |
| NCT8-63M-230/31 | 63A 230V 3NO+1NC | 1 | 40 |
Ratings
Utilization
category | Ui (V) | Ui (V~) | Conventional
heating current (A) | Ie (A) | Controlled
power (kW) |
| AC-1, AC-7a AC-7b | 500 | 230 | 63 | 63/25 | 13/3.8 |
| AC-1, AC-7a AC-7b | 500 | 230 | 40 | 40/15 | 8.4/2.4 |
| AC-1, AC-7a AC-7b | 500 | 230 | 32 | 32/12 | 6.5/1.9 |
| AC-1, AC-7a AC-7b | 500 | 230 | 25 | 25/8.5 | 5.4/1.9 |
| AC-1, AC-7a AC-7b | 500 | 230 | 20 | 20/7 | 4/1.2 |
Making and breaking capacity
Utilization
category | Making and breaking conditions | Electrification
time (s) | Interval
time (s) | Operating
cycle times |
| Ic/Ie | Ur/Ue | COSΦ |
| AC-1, AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 | 50 |
| AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 | 50 |
Conventional operating performances
Utilization
category | Making conditions | Breaking conditions | Electrification
time (s) | Interval
time (s) | Operating
frequency |
| Ic/Ie | Ur/Ue | COSΦ | Ic/Ie | Ur/Ue | COSΦ |
| AC-1 | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 6000 |
| AC-7a | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 30000 |
| AC-7b | 6.0 | 1.0 | 0.45 | 1.0 | 0.17 | 0.45 | 0.05 | 10 | 30000
|
